GCB 2020 Tutorial¶

What exactly is Conda?¶

A package and environment manager
- Like apt/yum, but much more flexible
- Environments are isolated from each other
User-contributed package recipes
- Different “channels”, can create your own
- Updated constantly
Prebuilt binaries
- Linked to libraries in the same environment

tutorial-conda-miniconda-anaconda

Conda packages¶

Specific versions
Various sources (“channels”)

Defined requirements

Usually from the same or predefined other channels

.
├── info
│   └── recipe
│       ├── conda_build_config.yaml
│       ├── meta.yaml
│       └── parent
└── site-packages
    ├── snakemake
    └── snakemake-5.24.0.dist-info
        └── LICENSE.md

Conda channels¶


package-1.2.3 package-1.2.2 package-1.2.1 package-1.0.0alpha2 package-1.0.0alpha1	dependency-1.1.2 package-1.2.3 package-1.2.0 package-1.2.1 package-1.2.0 pysam-0.16.0.1 samtools-1.10 snakemake-5.24.0	libgcc-ng-9.3.0 libcurl-7.71.1 zlib-1.2.11 numpy-1.19.1 scipy-1.5.2

conda-forge: Most dependencies (numpy, scipy, zlib, CRAN packages, etc.)
bioconda: Most bioinf packages (salmon, STAR, samtools, DESeq2, etc.)
defaults: Packages built by Anaconda Inc.

Order matters! Use this one:

$ conda config --show channels
channels:
  - conda-forge
  - bioconda
  - defaults

$ conda config --prepend channels bioconda
$ conda config --prepend channels conda-forge

Finding Packages¶

Search https://anaconda.org

Use conda search

$ conda search pysam
Loading channels: done
# Name                       Version           Build  Channel
[...]
pysam                         0.16.0  py36h71d3148_1  bioconda
pysam                         0.16.0  py36h873a209_0  bioconda
pysam                         0.16.0  py37ha9a96c6_0  bioconda
pysam                         0.16.0  py37hc501bad_1  bioconda
pysam                       0.16.0.1  py27ha863e18_1  bioconda
pysam                       0.16.0.1  py36h4c34d4e_1  bioconda
pysam                       0.16.0.1  py36h71d3148_0  bioconda
pysam                       0.16.0.1  py37hc334e0b_1  bioconda
pysam                       0.16.0.1  py37hc501bad_0  bioconda
pysam                       0.16.0.1  py38hbdc2ae9_1  bioconda

Packages have versions, build numbers, build hashes/strings
- Build hashes include dependency information
Bioconda packages are also listed at http://bioconda.github.io/conda-package_index.html

Practical 1¶

What are the most recent versions of samtools and Snakemake?

$ conda search samtools | tail -n1
samtools                        1.10      h9402c20_2  bioconda

$ conda search snakemake | tail -n1
snakemake                     5.24.0               1  bioconda

Conda environments¶

A (mostly) self-contained directory with a set of compatible packages
Uses links to reduce disk space when possible

├── bin
├── conda-meta
├── envs
│   ├── tutorial
│   ├── pysam
│   ├── samtools
│   └── snakemake
├── etc
├── include
├── lib
├── libexec
├── pkgs
└── share

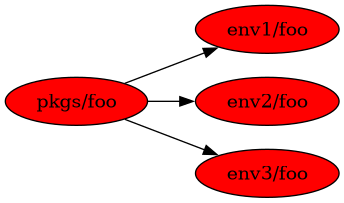

digraph {
rankdir="LR";
node [fillcolor=red style=filled];
"pkgs/foo" -> "env1/foo";
"pkgs/foo" -> "env2/foo";
"pkgs/foo" -> "env3/foo";
}

$ ls -1i **/bin/samtools
116889197 envs/tutorial/bin/samtools
116889197 envs/samtools/bin/samtools
116889197 pkgs/samtools-1.10-h2e538c0_3/bin/samtools

Conda environments¶

Linking is relative to packages!
No more conflicting dependencies between versions!

$ ldd -r envs/samtools/bin/samtools
     linux-vdso.so.1 =>  (0x00007ffc684ef000)
     libhts.so.3 => /home/gcb2020/conda/envs/samtools/bin/../lib/libhts.so.3 (0x00007f32c8eac000)
     libtinfow.so.6 => /home/gcb2020/conda/envs/samtools/bin/../lib/libtinfow.so.6 (0x00007f32c8e6c000)
     libncursesw.so.6 => /home/gcb2020/conda/envs/samtools/bin/../lib/libncursesw.so.6 (0x00007f32c8e2f000)
     libm.so.6 => /lib64/libm.so.6 (0x00007f32c8ad0000)
     libz.so.1 => /home/gcb2020/conda/envs/samtools/bin/../lib/libz.so.1 (0x00007f32c8e11000)
[...]

Conda environments – common commands¶

conda info --envs (or conda env list)

Lists available environments

$ conda info --envs
# conda environments:
#
base                  *  /home/gcb2020/conda
tutorial                 /home/gcb2020/conda/envs/tutorial
pysam                    /home/gcb2020/conda/envs/pysam
samtools                 /home/gcb2020/conda/envs/samtools
snakemake                /home/gcb2020/conda/envs/snakemake

You start in base
The * indicates the active environment

conda create/conda env remove
- Create/remove environments
$ conda create --name=myenv python=3.8 numpy 'pysam>=0.16' $ conda env remove --name=myenv
- Packages can have versions specified
- Min/max versions can be specified

conda activate/conda deactivate

Activates/deactivates an environment

$ command -v samtools
$ conda activate samtools
$ command -v samtools
/home/gcb2020/conda/envs/samtools/bin/samtools
$ conda deactivate
$ command -v samtools

You can “stack” environments with conda activate --stack ...

conda install/conda remove

conda list

$ conda activate myenv
$ conda install snakemake
... a lot of status output ...
$ conda list
... many packages ...
$ conda remove snakemake

Tip

Keep your base env clean! (only the package manager + its deps)
Generously create/remove environments for different tools/workflows!

Introducing `mamba`¶

Newer package manager called mamba
A reimplementation of conda
Compatible with conda
- Installed beside conda in the base environment
Much faster than conda
- Native binary, C++ code
- Uses another dependency solver, libsolv
Does not suffer from a yet-to-be-fixed bug in conda
- conda may install older versions of snakemake
- unless conda config --prepend repodata_fns repodata.json is set

Practical 2¶

Let’s create some new environments!

But first make sure that

conda is up to date
The correct channel order is in place

$ conda activate base
$ conda update --all
$ conda --version
conda 4.8.4
$ conda config --show channels
channels:
  - conda-forge
  - bioconda
  - defaults
$ conda config --show-sources
==> /home/gcb2020/.condarc <==
channels:
  - conda-forge
  - bioconda
  - defaults
$ conda info

Practical 2.1¶

Create a new environment named “mapping” with bwa-mem2 and pysamstats
What versions of numpy and python got installed in it?

$ conda create --name=mapping bwa-mem2 pysamstats
$ conda activate mapping
$ conda list | grep -E '^(python|numpy)\>'
numpy                     1.19.1           py38hbc27379_2    conda-forge
python                    3.8.5           h1103e12_7_cpython    conda-forge
$ conda list '^(numpy|python)$'

Practical 2.2¶

Create a new environment for Snakemake with mamba

$ conda install --name=base mamba
$ mamba --version
mamba 0.5.1
conda 4.8.4
$ mamba create --name=snakemake snakemake
$ conda activate snakemake
$ snakemake --version
5.24.0

Conda environments – common commands¶

conda env export/conda env create

Exports or creates an environment from a YAML file

$ conda env export --no-builds > env.yaml
$ conda env create --name=more-map-and-call --file=env.yaml
$ head env.yaml
name: map-and-call
channels:
  - conda-forge
  - bioconda
  - defaults
dependencies:
  - _libgcc_mutex=0.1
  - _openmp_mutex=4.5
  - bcftools=1.10.2
  - blis=0.7.0

Common pitfalls¶

Wrong channel order
Installing packages in your base env
Manually manipulating $PYTHONPATH
Avoid manually (i.e., not via conda/mamba) installed packages

Conda package recipes¶

$ tree -A recipes/varlociraptor
recipes/varlociraptor/
├── build.sh
└── meta.yaml

meta.yaml is required
optional:
- build.sh
- (small) test files
- license file

`meta.yaml` sections¶

package: name and version
source: url and SHA256/MD5 checksums
build: build number, platforms to skip, “noarch” information
requirements: packages for building, linking, running
test: commands/imports
about: webpage, license, summary of what the package does
extras: comments, maintainers, etc.

`package`¶

package:
  name: unifrac
  version: 0.20.0

Can also use Jinja variables:

{% set version = "0.20.0" %}

package:
  name: unifrac
  version: {{ version }}

`source`¶

source:
  url: https://github.com/biocore/unifrac/archive/{{ version }}.tar.gz
  sha256: e2692c683fddc6450ca4da049112b00264cf61aef1071d2ebc0f0539b86611b8

Avoid git_url/svn_url
Only actual releases, no alpha/beta

`build`¶

build:
  number: 0

Reset to 0 with new releases
Increment with each change for same version

Can skip build on conditions

build:
  number: 0
  skip: True  # [osx or py<36]

noarch is useful, but has special semantics
- generic: No platform-specific code (Java, pure Perl, pure R, etc.)
  build: number: 0 noarch: generic
- python: Pure Python packages, one build -> all versions
  build: number: 0 noarch: python
- Not usable with # [condition] selectors
- Only if using noarch: python:

  use - python >=3.0 instead of skip: True # [py<30]

You can include entire build command

build:
  number: 0
  noarch: python
  script: {{ PYTHON }} -m pip install . --no-deps -vv

Alternatively, use build.sh for “more involved” installs

$ cat build.sh
# !/usr/bin/env bash
"${PYTHON}" -m pip install . --no-deps -vv

There are more predefined environment variables in conda-build

`requirements`¶

requirements:
  build:
    - {{ compiler('c') }}
  host:
    - htslib
    - zlib
  run:
    - htslib
    - zlib

build: Compilers, preprocessors, etc.
host: Anything linked against
run: All other dependencies
Use compiler functions ({{ compiler('cxx') }} and such)

A note on “pinnings”¶

Packages need to be compatible
Same compiler per platform
Same htslib/numpy/zlib/libcurl/etc. versions
Above are “pinned”

$ conda search samtools | tail -n1
samtools                        1.10      h9402c20_2  bioconda

The hash h9402c20 above is specific to the used pinning
Bioconda uses conda-forge-pinning

Version ranges are very useful!

- importlib_metadata >=1.7.0,<2.0.0
- pysam >=0.16,<0.17
- python >=3.7
- pyyaml >=5.3,<6

`test`¶

test:
  imports:
    - vembrane
  commands:
    - vembrane --help

Keep it simple/quick but functional
No large test files
imports works for Python/Perl

`about`/`extra`¶

about:
  home: https://github.com/vembrane/vembrane
  license: MIT
  license_file: LICENSE
  summary: Filter VCF/BCF files with Python expressions.

extra:
  recipe-maintainers:
    - felixmoelder
    - mbargull

Please include license and license_file!

Don’t fear skeletons¶

Making recipes manually takes time

Many common sources are automated

$ mkdir recipe
$ cd recipe
$ conda-skeleton pypi vembrane

Skeletons for: PyPI, CPAN, CRAN
- For CRAN: https://github.com/bgruening/conda_r_skeleton_helper
- CRAN packages belong on conda-forge if possible!
- For PyPI: grayskull is a newer/improved implentation
We (Bioconda) already make ALL Bioconductor packages
On bioconda-recipes, recipes are in recipes/

Practical 3¶

Make a new cutadapt recipe

$ conda create --name=conda-build conda-build
$ conda activate conda-build
$ mkdir recipes
$ cd recipes
$ conda-skeleton pypi cutadapt
$ $EDITOR cutadapt/meta.yaml  # edit build, host requirements, license_file

Common problems¶

Compiling C/C++ packages can be troublesome
The compiler is NOT called gcc
Installed into $PREFIX
Library dependencies are in $PREFIX/lib

$ cat build.sh
#! /usr/bin/env bash
make install \
    CC="${CC}" \
    CXX="${CXX}" \
    CFLAGS="${CFLAGS}" \
    CXXFLAGS="${CXXFLAGS}" \
    LDFLAGS="${LDFLAGS}" \
    prefix="${PREFIX}"

Practical 4 and/or Q&A¶

bioconda-recipes tour?
Want to contribute new packages?
- Anything you need but could not find in Bioconda?
- Candidates from the GCB 2020 book of abstracts:

  BiCoN: Python package

  MeDeMo: JAR file

  STITCHIT: C++/CMake

  TEPIC: Python + R + C++

  PrediTALE: JAR file

  InstantDL: Python package

  FilterFFPE: pending addition to Bioconductor
Questions?

GCB 2020 Tutorial¶

What exactly is Conda?¶

Conda packages¶

Conda channels¶

Finding Packages¶

Practical 1¶

Conda environments¶

Conda environments¶

Conda environments – common commands¶

Introducing mamba¶

Practical 2¶

Practical 2.1¶

Practical 2.2¶

Conda environments – common commands¶

Common pitfalls¶

Conda package recipes¶

meta.yaml sections¶

package¶

source¶

build¶

requirements¶

A note on “pinnings”¶

test¶

about/extra¶

Don’t fear skeletons¶

Practical 3¶

Common problems¶

Practical 4 and/or Q&A¶

Introducing `mamba`¶

`meta.yaml` sections¶

`package`¶

`source`¶

`build`¶

`requirements`¶

`test`¶

`about`/`extra`¶
